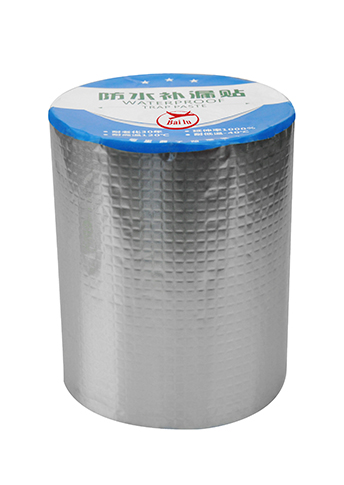

BUTYL FOIL TAPE

The aluminum foil attach with butyl rubber consists of backing. And coat with strong butyl mastic glue. The protected by white or blue LDPE liner. In particular, it is a perfect self-adhesive sealing tape. Especially, suitable for sunshine room roof or ceiling waterproof, to seal the gap of roof and windows, also can seal the pipes, and cars. Thus, it is an ideal tape for leak repair. Additionally, we guarantee 99% of the moisture leakage is applicable. While apply this tape, please ensure the surface is firm, clean and oil free.

Therefore, the tape is importance part in building & construction industries.

Butyl Foil Tape Specifications

Product Characteristics

Performance Data

Test Method

Total Thickness

1000 mic（39.4 mil）

ASTM D1000

Foil Thickness

200 mic (7.9 mil)

ASTM D1000

Peel Adhesion

50 N/25mm (180 Oz/In)

PSTC-101/ASTM D3330

Tensile Strength

75 N/25mm (17 Lb/In)

ASTM D1000

Elongation at Break

800%

PSTC-131/ASTM D3759

VOC Content

＜1g/L

Service Temp.

-40 ~ 120℃（-40 ~ 248 °F）

Operating Temp.

0 ~ 40℃（32 ~ +104 °F）

Features of Butyl Al Foil Tape

Butyl rubber & aluminum laminated backing

Coated with aggressive butyl mastic adhesive

Protected by white or blue LDPE liner

With low VOC content

Excellent moisture and vapor resistance

Conform well to uneven surfaces

Quick dry and high adhesion

Efficient and quick repairs to roof and pipes

Process of Butyl Foil Tape Production

NO.1

First, we will use different thickness of dead soft pure aluminum foil or woven foil backing, then coat with high adhesion butyl rubber mastic adhesive. The total thickness can be 1mm, 1.5mm, 2mm, 3mm, etc.

As one of adhesive tape manufacturers, we will do our best to meet all the needs of customers.

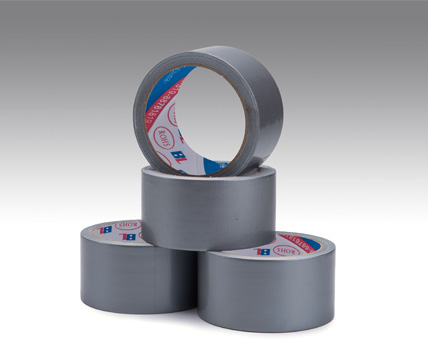

CLOTH TAPE

Egret cloth tape is also called duct tape. From the name, can tell it is a cotton cloth tape coated with aggressive adhesive. Its durable and flexible properties enable it can conform to different irregular surfaces. It is widely used for bundling, sealing, fixing, waterproofing, etc. Also, it has many different colors. In the meantime, it is extremely easy for hand tear, can be easily used by workers. Notably, after tearing the cloth tape is without loose thread hanging off at the end.

Types of Cloth Tape

Normally, cloth tape referred to duct tape, gaffer tape, carpet tape, glass cloth tape, medical tape, athletic tape, binding tape, etc. For instance, the duct tape is composed of cloth and polyethylene resin. In addition, the cloth tape consists of cotton, polyester, woven fabrics and rubber adhesives.

Advantages of Cloth Tape

It offers a higher tensile strength than some ordinary adhesive tapes. Many colors are available to choose from, easily recognize, and more cheerful.

It can be laminated with polyethylene, which enables a waterproof and more smooth surface. Coated with a very aggressive rubber adhesive, can stick to the object long time.

Made of cotton cloth, very easy to handle by workers, and easy to tear. Clean end after tearing, no loose thread left, neat looking.

Excellent resistance to moisture and vapor. Thanks to its backing material, it is very flexible and durable, can conform well to many irregular surfaces applications.

Applications of Cloth Tape

Used in Building Industries

The cloth tape is made of woven or non-woven fabrics and can be also laminated with polyethylene resin. Thanks to its strong material, it has many different applications, such as floor sealing, carton sealing, duct wrapping, splicing, carpet sealing or repairing, seaming, patching, bundling, and is widely used as waterproofing, and many purposes in building industries. Important to realize, it has many different colors, which aim to match the material which needs to be repaired. In the meantime, as the name implies, duct tape is also commonly used for ductwork repairs.

Used in Aerospace Industries

Especially, it can also be used in aerospace industries. Must be remembered, it has glue residue. After you removed it. Thus, you can only apply this tape for permanent or semi-permanent purposes.

What Is The Difference Between Cloth Tape And Duct Tape?

Cloth Tape vs Duct Tape

Actually, cloth tape is like the father of duct tape. Because cloth tape is including duct tape, gaffer tape, medical tape, glass cloth tape, etc. On one hand, the cloth tape is composed of cotton cloth, woven or non-woven fabrics, and rubber adhesive.

On the other hand, duct tape is added and laminated with polyethylene film on the cotton, which can make the cloth tape more strong and have better resistance to moisture and vapor. In the meantime, the touch feeling of duct tape is better than cloth tape.

Now the price of adhesive tape is reasonable, if you have needs, please contact us.

If you want to know more kinds of reinforced aluminum foil tape, please visit our website.

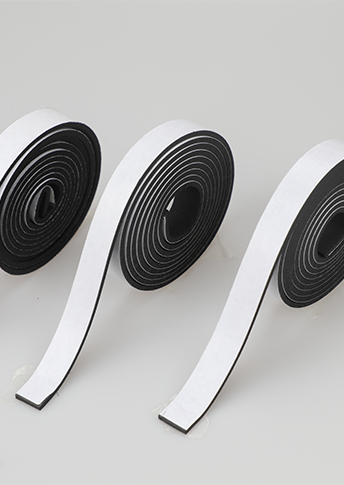

CR FOAM TAPE

CR foam tape stands for chloroprene rubber foam tape. CR is chloroprene (neoprene) as the main raw material for alpha polymerized elastomer, soluble in toluene, xylene, ethylene dichloride, three vanadium ethylene, slightly soluble in acetone, methyl ethyl ketone, ethyl acetate and cyclohexane, insoluble in hexane and solvent gasoline, but soluble in the appropriate proportion of good solvent and bad solvent and non-solvent or bad mixed solvent composed of solvent and non-solvent. Moreover, all products meet the RoHS environmental requirements. Furthermore, we can either provide jumbo rolls, or die cutting pieces. The width can be from 10mm to 1600mm, the length can be from 100mm to 2000mm.

CR Foam Tape Specifications

Product Characteristics

Performance Data

Test Method

Carrier Color

Black

Visual

Liner Color

White

Visual

Density

≥190 KG/m³

ASTM D-3575

Peel Adhesion

≥5 N/CM

ASTM D-3330

Loop Tack

17 # steel ball

GB/T 4852-84

Tensile strength

20 N/CM

ASTM D3759

Elongation

≥150%

ASTM D-3330

Temp Resistance

-30℃~80℃

Features of CR Foam Tape

5mm high-density closed-cell CR foam as carrier

Coated with special formula of very high tack adhesive

Laminated with yellow white paper easy release liner

Excellent properties of elasticity, high bonding

Outstanding oil resistance, wear resistance

Good high temperature resistance

Great air sealing, moisture sealing

Outstanding conformity to uneven surfaces

Process of CR Foam Tape Production

NO.1

First, closed cell chloroprene rubber foam products are mainly formed by chloroprene material. Through alpha polymerized process into elastomer.

NO.2

Second, we coat single sided or double-sided high adhesion of pressure sensitive glue.

NO.3

Third we laminate the white silicon paper liner on which.

NO.4

Finally, we use our lathe slitting machines to cut the jumbo rolls to different standard or non-standard width and length of small rolls. Meanwhile, we can also cut them to different shapes of die cutting pieces.

If you are looking for a reliable adhesive tape factory, please contact us, and we will be your best partner.
